Solvent Chilling Systems
Centrifuge Extraction Units

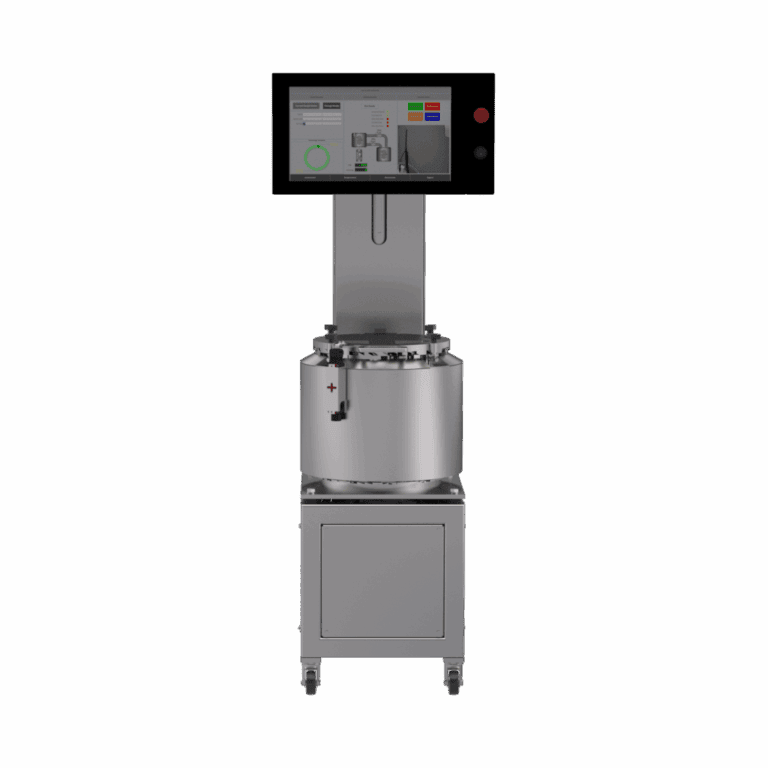

CES-80
Dimensions 37 × 23.2 × 68.75 in Capacity Per Batch 2-3LBS per batch
Batch Cycle Time Typical 8-12 minutes

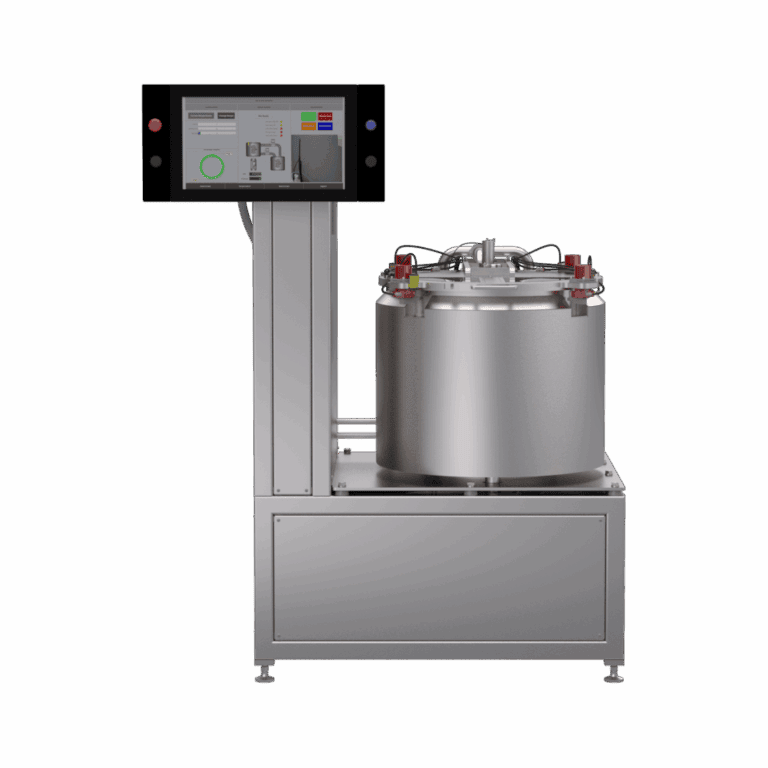

CES-300
Dimensions 26 × 36 × 77 in Capacity Per Batch 8-13 lbs per batch
Batch Cycle Time Typical 10-15 minutes

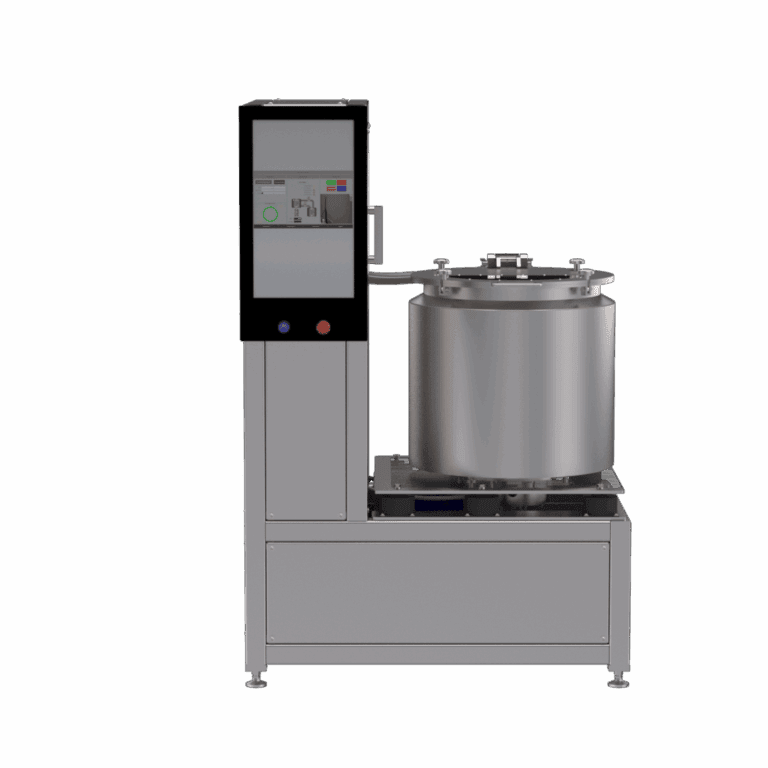

CES-600
Dimensions 45.5 × 43 × 68.75 in Capacity Per Batch 25-30 LBS per batch
Batch Cycle Time Typical 15-20 minutes
CES-1000
Dimensions 48 × 38 × 78 in Capacity Per Batch 40-55 lbs per batch
Capacity Per Shift 1000
Batch Cycle Time Typical 15-20 minutes

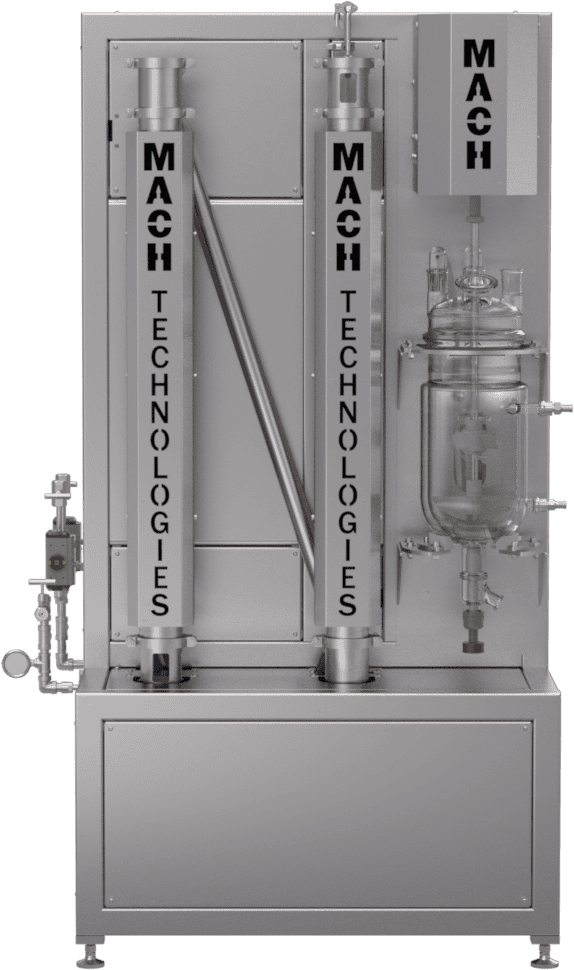

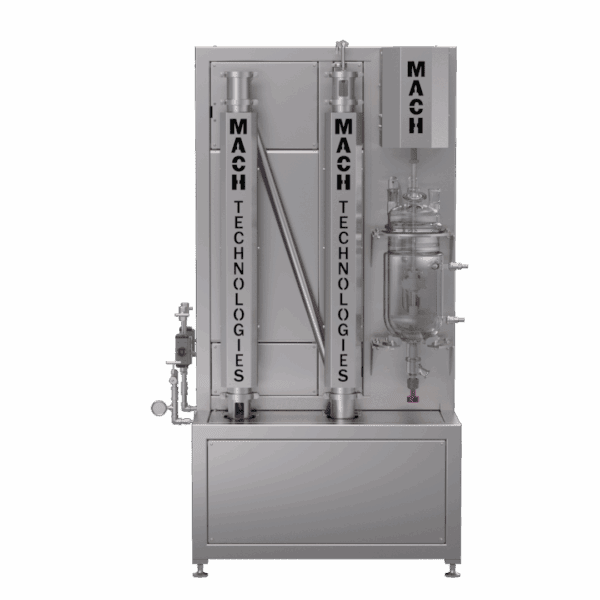

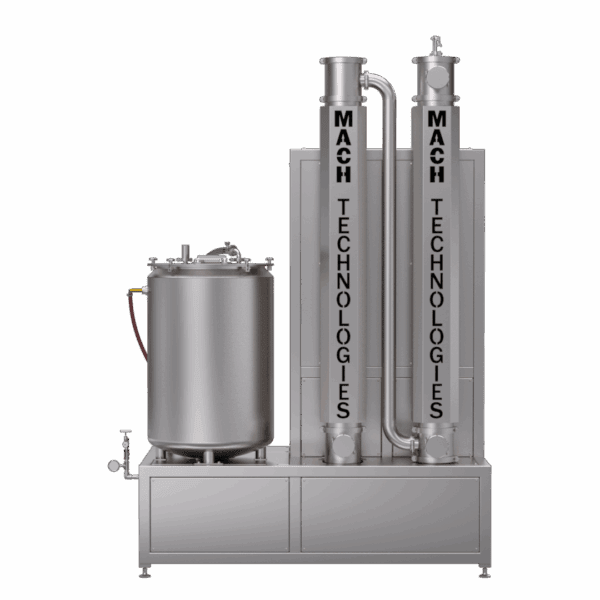

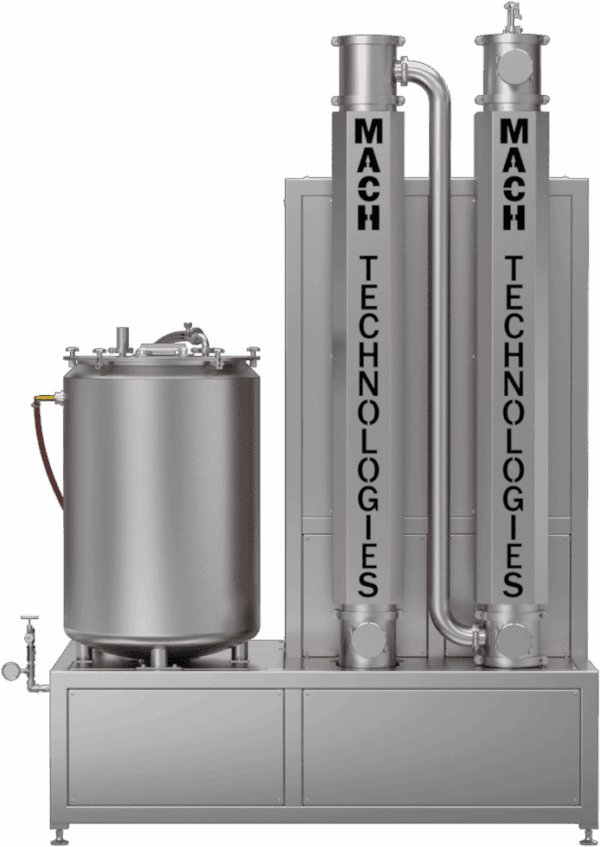

Solvent Recovery Systems
ASR5DS10
Capacity 5-10 Gallons per hour of ethanol recovery, and has a incorporated 10 liter decarboxylation reactor so both processes are completed in a simple piece of equipment

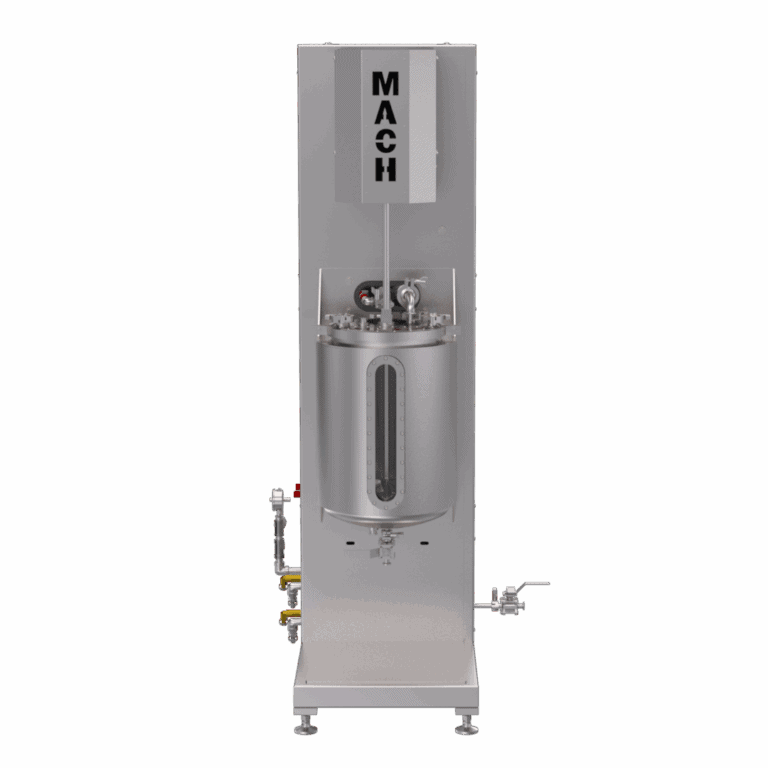

Decarboxylation Systems

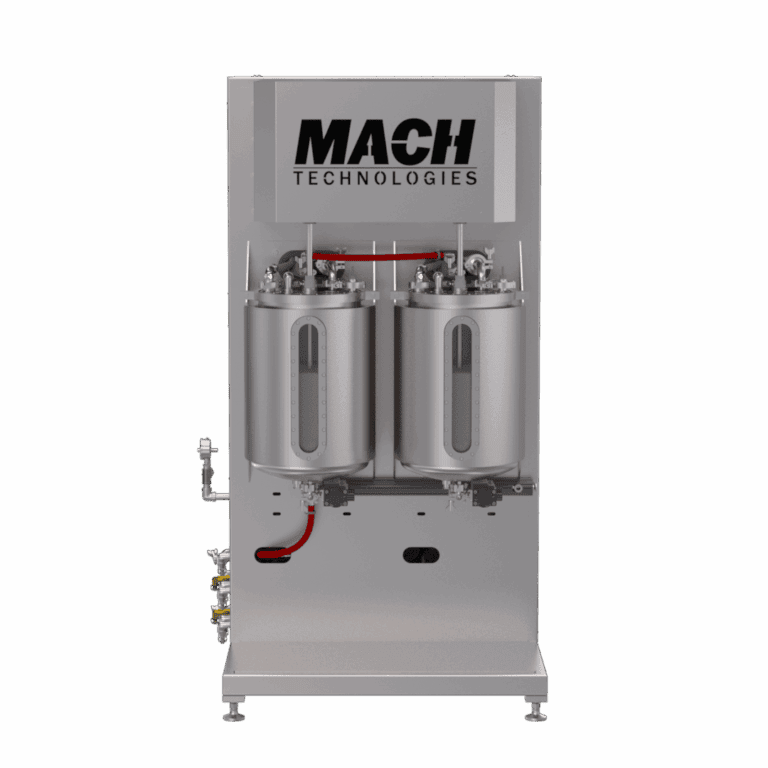

DS-2020
Capacity Dual 20 liter vessel capacity. Removed typical decarboxylation bottlenecks in the decarboxylation process since one reactor can be being filled while the other is performing a decarboxylation.

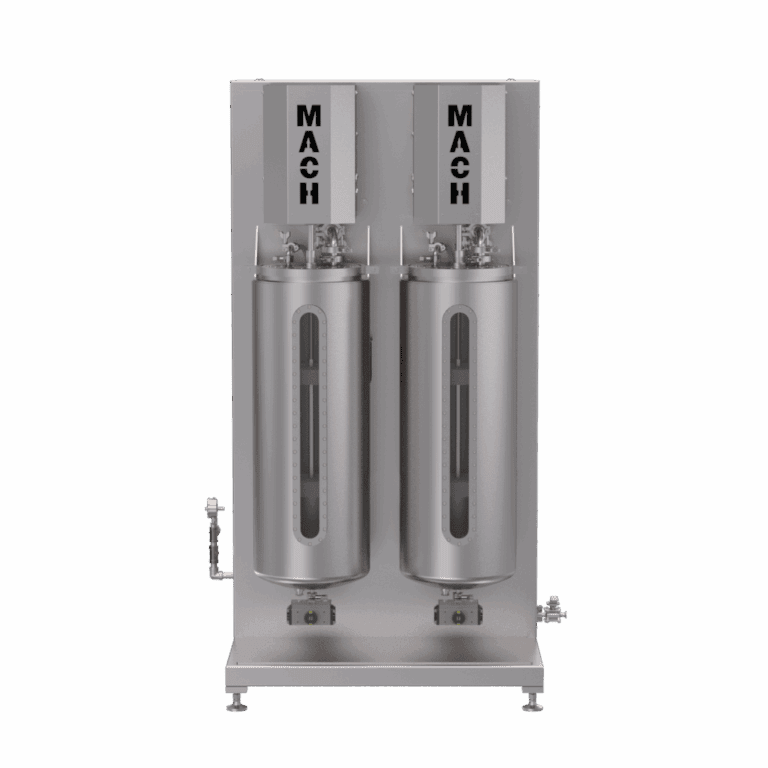

DS-5050
Capacity Dual 50 liter vessel capacity. Removed typical decarboxylation bottlenecks in the decarboxylation process since one reactor can be being filled while the other is performing a decarboxylation.
DS-100100
Capacity Dual 50 liter vessel capacity. Removed typical decarboxylation bottlenecks in the decarboxylation process since one reactor can be being filled while the other is performing a decarboxylation.
Single Operator
The entire skid is controlled through a single operator interface
Superior Engineering
The entire system was designed by our USA engineering team, who has 40+ years of expertise in chemical, mechanical and controls engineering.
USA Manufacturing
This entire system was manufactured in our USA facility, which guarantees the quality.
Safety
The system incorporated the latest in safety controls and interlocks, for safe operation
Jacketed Vessel
The extraction unit has a double jacket for cooling and vacuum insulation, to maximize efficiencies and lower operational costs
C1D2
The machine & components are designed for C1D2 environments
Plug & Play
The machine has plug and play electrical connections for quick installation and trouble-free startup
Easy to Use
The entire system is controlled via a single operator interface and incorporated automated controls
On-Demand Support
The machine incorporated a remote connection, for on demand technical support from the MACH technical team
Specialized O-Ring Sealing System
The unit has a cascade o ring sealing system to ensure leak free operation
Lower Operational Cost
The machine is designed for efficiencies to reduce the operational costs, such as double tank jackets, insulated piping, motor amperage monitoring system, and electrical cooling
Support & Spare Parts
MACH Technologies has a dedicated spare parts team, and stocks spare parts for quick, same day shipment
